Features
Source/Measure Capabilities- • Dual channel model with 80W power
output (40W/channel) - • 4 quadrant source/measure with
6½-digit resolution - • Current Max/Min: 3A DC, 10A pulse/100fA
- • Voltage Max/Min: 40V/100nV
General Features- • Built-in "Plug & Play" Java-Based I-V
characterization and test software - • TSP® (Test Script Processing) technology
embeds complete test programs
inside the instruments - • Software emulation for Keithley's Model
2400 SourceMeter SMU Instrument - • Large, easy-to-read, dual line display

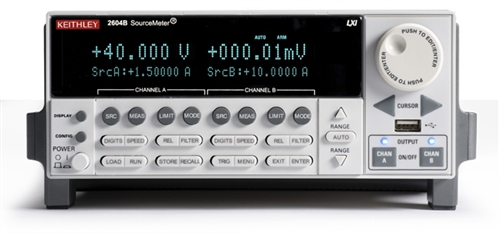

The Model 2604B SourceMeter® SMU instrument is a new dual channel SMU instrument with best-in-class value and performance. Its tightly integrated four-quadrant design allows it to simultaneously source and measure both voltage and current to boost productivity in R&D and bench-top applications. The Model 2604B is equipped with our high speed TSP® technology, which is over 190% faster than traditional PC-to-instrument communication techniques. The Model 2604B is designed for bench-top applications and, therefore, does not have the high-end, system-level automation features of the Model 2602B SourceMeter SMU Instrument that includes digital I/O, TSP®-Link technology, and contact check function. The wide range of 3A DC, 10A pulse, 40V output makes the Model 2604B suitable for testing a wide range of higher current devices, materials, components, and sub-assemblies.
|
