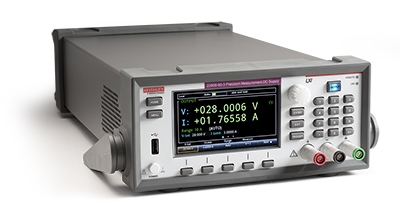

Keithley 2280S-60-3 Precision Measurement DC Power Supply, 60V, 3.2A

Home > SHOP ALL PRODUCTS > Brands > Keithley >

We only sell this product to Mexico

Our Price: $3,393.40 USD

Availability: 4 to 6 weeks
Product Code: 2280S-60-3

Description

Datasheet PDF Format

Features
The Series 2280S Precision Measurement, Low Noise, Programmable DC Power Supplies can source stable, low noise voltages as well as monitor load currents over a wide dynamic range from amps to nanoamps. The Model 2280S-32-6 can output up to 32V at up to 6A; the Model 2280S-60-3 can output up to 60V at up to 3.2A. Both supplies use linear regulation to ensure low output noise and superior load current measurement sensitivity. A high resolution color Thin Film Transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface that speeds instrument setup and operation. In addition, built-in plotting functions allow monitoring trends such as drift. These supplies provide the flexibility required for both benchtop and automated test system applications. For example, they provide a list mode, triggers, and other speed optimization functions to minimize test time in automated testing applications.

• 100nA to 6A with high accuracy
• Measure voltage and current with 6½-digit resolution
• Capture dynamic load currents as short as 140«s
• Output up to 192W of low noise, linear regulated power
• Programmable rise and fall times eliminate voltage overshoot and undershoot transients
• Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
• High resolution TFT display and soft-key/icon-based user interface simplify power supply operation
• Programmable output sequences reduce test times
• Sink up to 0.45A to discharge voltage quickly
• Digital I/O for direct communication with other devices and instruments
• GPIB, USB, and LAN interfaces
• Built-in web page simplifies automated control/monitoring/data logging
• Automate tests easily with KickStart start-up software
