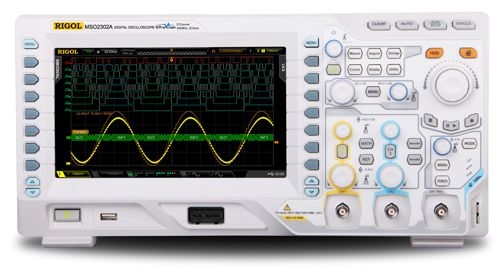

MSO/DS2000A Series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO2000A Series has 2+16channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

• Bandwidth up to 300MHz,standard with 50Ω input
• Lower noise floor,Wider vertical range(500uV/div ~ 10V/div)
• Max. Sample Rate: Analog channel up to 2G Sa/s ,Digital channel up to 1G Sa/s(MSO)
• Memory Depth :Analog channel up to14Mpts /56Mpts(Opt.),Digital channel up to 14Mpts/28Mpts(Opt.)
• Innovative "UltraVision" Technology
• Waveform capture rate up to 50,000 wfs/s
• Up to 256 Levels intensity grading waveform display
• Up to 65,000 frames Hardware based Real Time waveform Record,Replay and Analysis function(Std.)
• A variety of trigger and serial bus decording functions( RS232,I2C,SPI,CAN)
• Built-in 2 Ch Waveform generator (MSO/DS2000A-S)
• Complete connectivities :USB Host,USB Device,LAN(LXI Core Device 2011),AUX
• Compact size, light weight, easy to use
• 8 inch TFT (800x480) WVGA
