| Output: Voltage and Current Ranges | |
| Model |
CW 801M |
CW 1251M |
CW 2501M |
CW 801P |
CW 1251P |
CW 2501P |
| Power |
800VA |
1250VA |
2500VA |
800VA |
1250VA |
2500VA |
| Voltage |
| Voltage Range |
0 to 135Vrms, 0 to 270Vrms, user selectable |
| Accuracy (>5VAC) |
±1% of Range |
±0.1% of Range <100Hz ±0.2% of Range > 100Hz |
| Resolution |
0.1 Vrms |
| Total harmonic distortion |
0.25% typical <100Hz add 0.5%/100Hz above 100Hz |
| AC noise level (typical) |
<50
mVRMS |
<50
mVRMS |
<100
mVRMS |
<50
mVRMS |
<50
mVRMS |
<100
mVRMS |
| Amplitude stability1 |
±0.1% of full scale |
±0.05% of full scale |
| Load regulation |
±0.1% of full scale voltage for a full resistive load to no load (<10 mVRMS typical, measured at point of sense) |
| Line regulation |
±0.1% of full scale voltage for a ±10% line change from nominal line voltage (<5 mVRMS typical, measured at point of sense) |
| Remote voltage sense |
5 Vrms total lead voltage drop |
| Current |
| 135VAC Range |
6.0 ARMS |
9.4 ARMS |
18.6 ARMS |
6.0 ARMS |
9.4 ARMS |
18.6 ARMS |
| 270VAC Range |
3.0 ARMS |
4.7 ARMS |
9.3 ARMS |
3.0 ARMS |
4.7 ARMS |
9.3 ARMS |
| Accuracy |
± 0.5% typical |
± 0.5% max |
| Resolution |
0.1 ARMS |
0.01 ARMS |
| Frequency Range |
| Range |
45 to 500 Hz |
45 to 500 Hz, 45 to
1000 Hz (option) |
| Accuracy |
±0.5% typical |
±0.02% max |
| Resolution |
0.1 Hz |
0.1 Hz, 0.01 Hz for
remote programming |
| Phase |
All models single phase output. Multi-phase system configuration with Digital Expansion Cable |
| Power Factor of Load |
0 lag to 0 lead | |
| |
|
|
|
| Model |
CW 801M |
CW 1251M |
CW 2501M |
CW 801P |
CW 1251P |
CW 2501P |
| Power |
800VA |
1250VA |
2500VA |
800VA |
1250VA |
2500VA |
| Voltage |
| Range |
0 to 270 Vrms |
0 to 270 Vrms, 0 to
310VRMS (option) |
| Accuracy2 (VAC>5V) |
± 1% of full range |
±0.1% of range <100 Hz, ± 0.2%
of range>100 Hz,
± 0.3% of range>500 Hz (option) |
| Resolution |
0.1 Vrms |
0.1 Vrms |
| Current3 |
| 135VAC Range |
6.0 ARMS |
9.4 ARMS |
18.6 ARMS |
6.0 ARMS |
9.4 ARMS |
18.6 ARMS |
| Accuracy |
±2% of range for linear loads
with current >0.2A,
> 0.4A for 2500 VA |
±0.5% of range for linear loads |
| Resolution |
0.1 ARMS |
0.01 ARMS |
| Peak Current3 |
| Range |
- |
- |
- |
0 to 25A |
0 to 35A |
0 to 70A |
| Accuracy |
- |
- |
- |
±1% of Range |
| Resolution |
- |
- |
- |
0.1A |
| Frequency |
| Range |
45 to 500 Hz |
45 to 500 Hz, 45-1 000 Hz (option) |
| Accurace |
± 0.5% of reading |
± 0.02% of value |
| Resolution of display |
0.1 Hz |
0.1 Hz | |
| |
|
|
|
| Model |
CW 801P |
CW 1251P |
CW 2501P |
| Power |
800 VA |
1250 VA |
2500 VA |
| Power3 |
| Range |
0 to 800W |
0 to 1250W |
0 to 2500W |
| Accuracy |
±2% of range for linear loads |
| Resolution |
1W |
| Apparent Power3 |
| Range |
0 to 800 VA |
0 to 1250 VA |
0 to 2500 VA |
| Accuracy |
±2% of range for linear loads |
| Resolution |
1 VA |
| Power Factor3 |
| Range |
0 to 1 |
| Accuracy |
±4% of range for linear loads |
| Resolution |
0.01 |
| Crest Factor |
| Range |
0 to 3.5 |
| Accuracy |
±5% of range |
| Resolution |
0.01 |
| Phase |
| Range |
-359 to +359 degrees.
Positive indicates time lag from reference |
| Accuracy |
Within 100 microseconds of equivalent angle |
| Resolution |
1 degree | |
| |
|
|
|
| Model |
CW 801M |
CW 1251M |
CW 2501M |
CW 801P |
CW 1251P |
CW 2501P |
| Power |
800VA |
1250VA |
2500VA |
800VA |
1250VA |
2500VA |
| Voltage |
90 to 264 VAC |
103 to 264 VAC |
180 to 264 VAC |
90 to 264 VAC |
103 to 264 VAC |
180 to 264 VAC |
| Current |
13 ARMS max |
18.5 ARMS max |
19.5 ARMS max |
13 ARMS max |
18.5 ARMS max |
19.5 ARMS max |
| Frequency |
47 to 63 Hz |
| Phases |
single-phase |
| Power Factor |
>0.99 typical at full load nominal line |
| Efficiency |
>73% typical at full load | |
| |
|
|
|
| Model |
CW 801M |
CW 1251M |
CW 2501M |
CW 801P |
CW 1251P |
CW 2501P |
| Dimensions |
19 W x
5.216 H x
20.07 D |
19 W x
5.216 H x
20.07 D |
19 W x
5.216 H x
20.07 D |
19 W x
5.216 H x
20.07 D |
19 W x
5.216 H x
20.07 D |
19 W x
5.216 H x
20.07 D |
| Weight |
48Lbs (22kg) |
53Lbs (24kg) |
86Lbs (39kg) |
48Lbs (22kg) |
53Lbs (24kg) |
86Lbs (39kg) |
| Shipping Weight |
56Lbs (25kg) |
61Lbs (28kg) |
94Lbs (43kg) |
56Lbs (25kg) |
61Lbs (28kg) |
94Lbs (43kg) | |
| |
|
|
|
| Front Panel Indicators |
Displays & indicators menu/status Enter/escape buttons are present for programming
Voltage mode (volts, watts, VA, PF) Green LED
Measure (amps, Hz, Pk amps, CF) Green LED
Program (amps, Hz I Limit) Green LED
Voltage range high/low Green LED |
| Regulatory compliance |
CE mark, UL and CUL (consult factory for availability) | |
| |
|
|
|
| Cooling |
Dual fan speed with side air intake, exhaust to
rear
|
| Operating temperature |
0 to 40°C
|
| Storage temperature |
-40 to +70°C
|
| Humidity |
0 to 85% at 25°C derate to 50% at 40°C (non condensing)
|
| Altitude |
Operating full power available up to 6,000 feet, non operating to 40,000 feet | | | |
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Applications

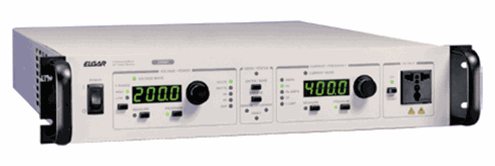

The ContinousWave (CW) is designed for testing single or polyphase electronics.
The CW is well suited for applications requiring a cost-effective low profile AC source.
Applications include:
- Testing for real world sine wave power conditions
- 400 Hz testing for avionics equipment
- 50/60 Hz margin testing
- Ballast testing
- Components testing
- Power supply testing for AC to DC converters
Programmable CW Features And Benefits
Front panel encoder knobs allow programming of voltage, current and frequency settings. Programmed or measured values can be viewed on the two LED displays through push button selection. Menu push buttons enable setting system configuration including parallel or three phase operation. This menu also allows setting current shutdown or foldback modes. Remote IEEE-488.2 and RS-232 control interfaces are standard. LEDs indicate: high or low range output voltage, measure or program mode, voltage or current mode operation
and output-on. LED’s indicate menu/status, remote control, lockout and fault conditions. Digital Signal Processing (DSP) based measurements include voltage, current (amperes, peak amperes, crest factor), power (watts, VA and power factor) and frequency.
|
|
|
|
|
|
|
