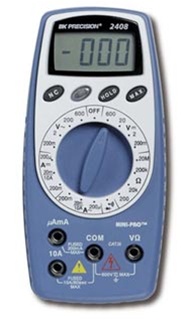

BK Precision 2408 Mini-Pro Multimeter, w/Non-Contact Tester. New in Box.

Home > SHOP ALL PRODUCTS > Brands > BK Precision >

List Price: $57.00

Availability: Usually Ships in 4 to 6 Weeks
Product Code: 2408

Description

Application Notes

Minimum order: $ 100.00 dollars.

Datasheet PDF Format

DC VOLTS	Manual Ranging
Ranges	200mV, 2V, 20V, 600V
Resolutions	100 uV, 1 mV, 10 mV, 1V
Basic Accuracy	+-(1.2% rdg + 1 dgt)
Overvoltage Protection	600 V, DC + AC Peak
Input Impedance	10 MΩ
AC VOLTS	Manual ranging, average responding, rms reading
Ranges	200 mV, 2V, 20V, 600V
Resolutions	100 uV, 1 mV, 10 mV, 1V
Basic Accuracy	+-(2% rdg + 1 dgt), 50Hz - 500Hz
Input Impedance	10 MΩ
DC CURRENT	Manual ranging
Ranges	2 mA, 20 mA, 200 mA, 10A*
Resolutions	0.1 uA, 10 uA, 100 uA, 10 mA
Basic Accuracy	+-(1.5% rdg + 1 dgt), +-(3.0% rdg + 1 dgt) for 20A
Overload protection	0.8A, 250V fuse; 10A, 600V fused
*10A on for 30 seconds maximum, off for 3 minutes minimum.
AC CURRENT	Manual ranging
Ranges	200 uA, 20 mA, 200 mA, 10A
Resolutions	0.1uA, 10 uA, 100 uA, 10 mA
Accuracy	+-(2.0% rdg + 4 dgt) for 10A
	+-(3.5% rdg + 4 dgt)
Overload protection
* 10A on for 30 seconds maximum, off for 3 minutes minimum.
RESISTANCE	Manual ranging
Ranges	200 Ω, 20 kOhm, 200 kOhm, 20 MOhm
Resolutions	100 mΩ, 10 Ohm, 100 Ohm, 10 kOhm
Accuracy	+-(1.5% rdg + 4 dgt), +-(3.0% rdg + 4 dgt) for 20 MΩ
	+-(5.0% rdg + 5 dgt) for 31 MΩ
Open circuit voltage	approx. 0.3VDC
Overload protection	500 VDC + AC Peak
DIODE CHECK
Resolution	1 mV
Accuracy	+-(2.0% rdg + 1 dgt)
Open Circuit Voltage	3 VDC Typ.
Test Current (approximate)	1.0 mA
Overload protection	500 VDC + AC Peak
Measures forward voltage drop of diode or semiconductor junction in mV.
CONTINUITY CHECK
Buzzer Threshold	< 100 Ω
Overload protection	500 VDC + AC Peak
Battery Test	Does not apply
Non-Contact Voltage Indicator	Detect voltages from 70V to 480VAC
	50Hz - 60Hz
Display	2000 count, 3 1/2 digit 0.53'' LCD
	with 32 segment analog bargraph
Polarity	Automatic, (-) negative polarity indication
Overrange Indication	OL or "-OL" is displayed
Measurement Rate	2.5 samples per second
Low Battery Indication	Symbol Displayed
Operating Temperature	32 0 to 122 0 F (0 0 to + 50 0 C), <70% R.H.
Storage Temperature
Power	Single standard 9V battery, NEDA 1604 or equivalent
Battery Life	200 hours typical (alkaline)
Dimensions (HxWxD)	5.63 x 2.25 x 1.375'' (143 x 68 x 47 mm)
Weight	7.27 oz. (206g).

Features

The Mini-Pro® multimeters are a professional quality multimeter at low cost. Three new meters with a price point that will put them in every toolbox and field service kit. The unique design fits easily in the palm of your hand and CE approval ensures safe operation. Manual and auto ranging models offer the basic functionality needed to do 90% of most required testing. These meters are the best value for any hobbies. No home should be without one!

DC/AC voltage to 600V
DC/AC current to 10A
Resistance to 20M
Diode test
Low battery indicator
CE approved
